Display images in modal using custom image widget

#1

I have image tiddlers with images field storing the relative path of the images to be displayed. Images are displayed in the image tiddlers using viewtemplate cascade and a custom image widget.

Then I am using these image tiddlers in another note tiddler using custom image widget (with source parameter being the title of the image tiddler). I am planning to add a modal button to the custom image widget to open the image tiddler in a modal window from within the note tiddler. I tried soo much but the image is not getting displayed, only the title of the image tiddler is shown in the modal.

Here is the example note tiddler - My TiddlyWiki — a non-linear personal web notebook

Here is the custom image widget - My TiddlyWiki — a non-linear personal web notebook

\widget $image(source)
<$parameters $params="all">
<$list filter="[<currentTiddler>!has[images]]">
<table style="border:none;"><tr style="border:none;">
<td style="border:none;">
<$list filter="[<source>get[images]splitregexp[\n]] +[unique[]]" variable="tids-imgs" >
<$genesis   $type="$image"  $remappable="no" source=<<tids-imgs>> />
</$list>
</td>
</tr>
<tr style="border:none;">
<td style="border:none;">
<$transclude $tiddler=<<source>> $field="label" $mode="block"/>
<br>
<$link to=<<source>> ><$transclude $tiddler="$:/core/images/link" size="10px"/></$link>
<$button tooltip=<<source>>>
<$action-sendmessage $message="tm-modal" $param=<<source>> />
{{$:/images/phosphor-icons/light/airplay-light}}</$button>
</td></tr></table>
</$list>
<$list filter="[<currentTiddler>has[images]!has[label]]" variable="img-tids">
<$list filter="[<img-tids>get[images]splitregexp[\n]] +[unique[]]" variable="img-tids-field">
    <$genesis   $type="$image"  $remappable="no" source=<<img-tids-field>>/>
</$list>
</$list>
<$list filter="[<currentTiddler>has[images]has[label]]" variable="labelled-img-tids">
<table style="border:none;"><tr style="border:none;"><td style="border:none;">
<$list filter="[<labelled-img-tids>get[images]splitregexp[\n]] +[unique[]]" variable="labelled-img-tids-field">
    <$genesis   $type="$image"  $remappable="no" source=<<labelled-img-tids-field>>/>
</$list>
</td>
</tr>
<tr style="border:none;">
<td style="border:none;">
<$transclude $tiddler=<<currentTiddler>> $field="label" $mode="block"/>
</td></tr></table>
</$list>
</$parameters>
\end

I have put all the relevant tiddlers in the storyriver of this wiki - https://modal-for-custom-image-widget.tiddlyhost.com/

#2
<$button tooltip=<<source>>>
<$action-sendmessage $message="tm-modal" $param=<<source>> />
{{$:/images/phosphor-icons/light/airplay-light}}</$button>

This is the specific part of the code concerned with modals. Can someone help ?

#3

Since the modal $param=<<source>>, it uses the <<source>> value (the name of the image tiddler) as the default modal title, the text field content from that image tiddler as the modal body, and a modal footer with a default “close” button.

For your “image-1” tiddler, the text field has no content, so the modal window does not show any content.

To have the modal display some content, edit the “image-1” tiddler and add the following text content:

<$image width="100%" height="100%" source={{!!images}}/>

-e

#4

Is there any way to use a template instead of adding the content to the text field

#5

I made a little more advancement in this

I created a image-widget-modal-template tiddler with the following contents

        "text": "<<img-text>>",
        "title": "image-widget-modal-template",
        "footer": "<$button message=\"tm-close-tiddler\">Close</$button>",
        "subtitle": " <<img-title>>",

I modified the modal portion of the code like this

<$list filter="[<source>get[images]splitregexp[\n]] +[unique[]]" variable="tids-imgs" >

<$action-sendmessage $message="tm-modal" $param="image-widget-modal-template" img-title={{{ [<source>get[title]] }}} img-text=`<$image source=<<tids-imgs>>/>` />

Now the title of the image tiddler is getting rendered correctly in the modal, but image part is still buggy

Here is another code tested

<$action-sendmessage $message="tm-modal" $param="image-widget-modal-template" img-title={{{ [<source>get[title]] }}} img-text=`<$image source=<<source>> />` />
#6
<$action-sendmessage $message="tm-modal" $param="image-widget-modal-template" img-title={{{ [<source>get[title]] }}} img-text=`<$image source="${ [<source>get[images]splitregexp[\n]] +[unique[]] }$"/>` />

This solved the problem atleast partially. Now only one thing is left- if the images field of the image tiddler contain image-path of more than one images, only one image is displayed in the modal

#7

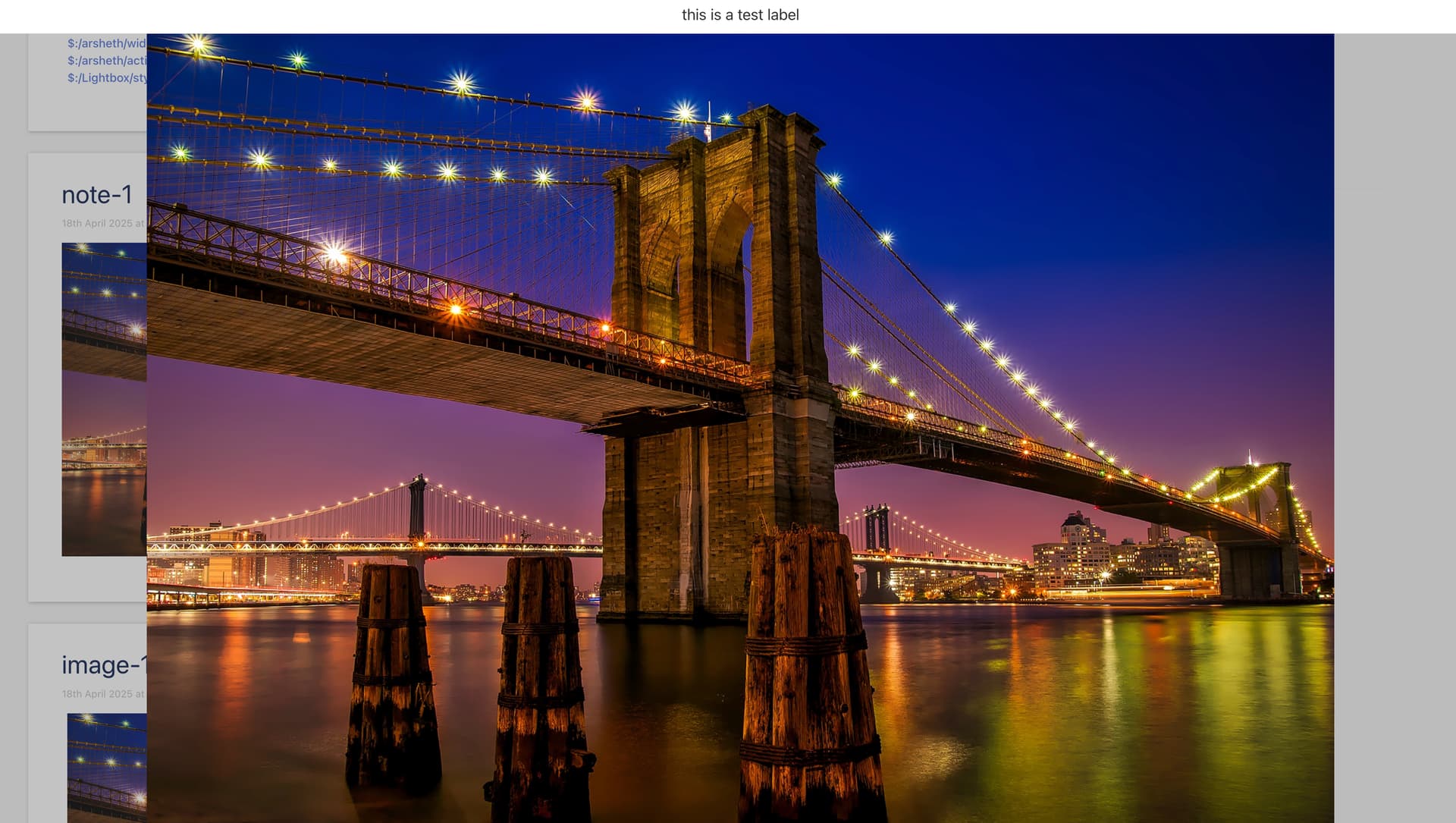

I have now incorporated @telumire lightbox macro into the custom image widget. So if you just click on the image, the lightbox like modal opens with the label at the top.

image1920Ă—1085 210 KB
